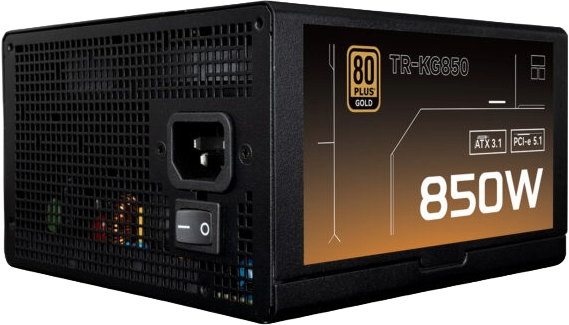

⚡ Thermalright KG-850W Gold – Fully Modular Power Supply

• Model: KG-850W
• Brand: Thermalright
• Output Power: 850 W
• Efficiency Certification: 80 PLUS Gold
• Design: Fully Modular
• Form Factor: ATX (150 × 140 × 86 mm)

🔌 Electrical Specifications

• Input Voltage: 100 – 240 V AC (auto-switching)
• Input Frequency: 50 – 60 Hz
• +12 V Rail: 70.8 A (850 W)
• PFC: Active PFC ≥ 0.9

🎯 Features & Protections

• High-efficiency 80 Plus Gold certification
• Silent 120 mm hydraulic-bearing cooling fan
• ATX 3.0 & PCIe 5.1 ready (supports 12VHPWR connectors)
• Over-Voltage (OVP), Over-Power (OPP), Over-Temperature (OTP), Short-Circuit (SCP), Under-Voltage (UVP) protections
• MTBF > 100,000 hours
• Warranty: 5 Years (Region Dependent)

📦 Package Contents

• Thermalright KG-850W Gold Power Supply
• Modular Cable Set (ATX 24-pin, EPS 8-pin, PCIe 8-pin, SATA, Molex)
• Power Cable
• User Manual & Warranty Card

The Thermalright KG-850W Gold delivers stable, efficient, and quiet performance. With a fully modular design and ATX 3.0 support, it’s an excellent choice for modern gaming and high-performance PC builds.
